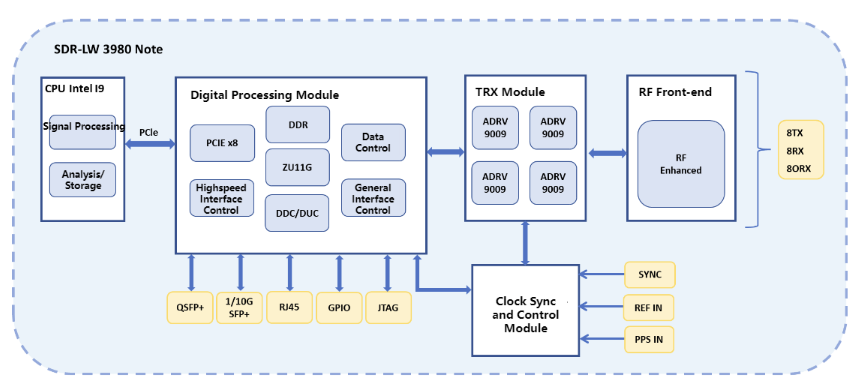

The SDR-LW 3980 Note is a high-performance 8-channel standalone Software Defined Radio (SDR) platform, integrating an onboard processor, a user-programmable Xilinx MPSoC ZU11EG FPGA, and an advanced RF front-end. Running on Ubuntu with built-in GNU Radio support, it delivers exceptional flexibility for custom signal processing applications. The system features eight fully coherent transmit and receive channels, each supporting 200MHz instantaneous bandwidth with a phase synchronization accuracy of under 1°, ensuring superior signal consistency and multi-channel interoperability.
Designed for demanding real-world use, the 3980 Note incorporates a ruggedized chassis and an integrated display, significantly enhancing reliability and operational ease in field testing and complex environments. With high-speed PCIe Gen3 x8 host interconnection, it enables low-latency, high-throughput data streaming—making it an ideal SDR solution for 5G communications, radar systems, satellite links, and spatial spectrum direction finding.
