Luowave LW820

●  Onboard Xilinx Zynq UltraScale+ MPSoC ZU11EG

●  ADI’s ADRV9009 RF chip, RF Range: 75 MHz – 6GHz

●  8 TX and 8 RX, Instantaneous Bandwidth: Up to 200 MHz per channel

●  Multi-device Phase Synchronization: <1° phase coherence deviation

●  Bandwidth Expansion Support: Enables rapid deployment of millimeter-wave systems

●  High-speed Interfaces: Gigabit Ethernet & PCIe for high-throughput data transfer

●  Supporting GPIO universal interface and JTAG debugging capability

●  Support external clock reference and PPS time reference

●  Applications including radar, SATCOM, and sub-THz 6G prototyping

Immediate enquiry

Product introduction

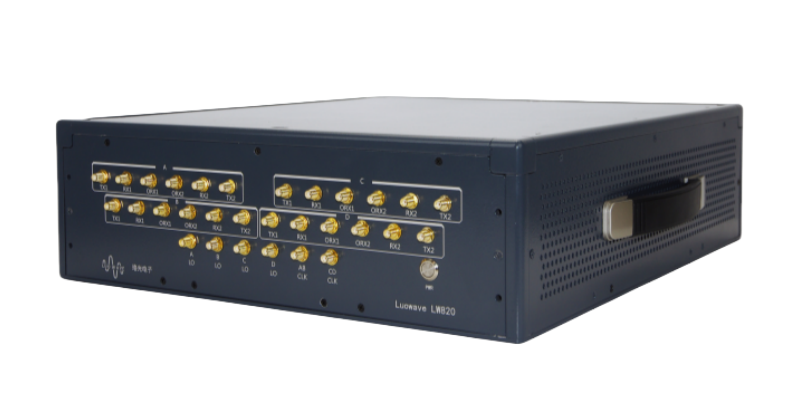

Luowave LW820 | 75 MHz-6 GHz RF SDR, 200MHz bandwidth/ch, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device

The Luowave LW820 is a fully self-developed 8-channel high-performance universal software-defined radio (SDR) coherent device by Wuhan Luowave Electronics Co., Ltd. Built on the ADRV9009 and Xilinx UltraScale+ ZU11EG platform, it operates across a frequency range of 75 MHz to 6 GHz, with a maximum instantaneous bandwidth of 200 MHz per channel. Leveraging precise clock management and synchronized signal processing mechanisms, the Luowave LW820 delivers exceptional phase coherence and collaborative performance, making it ideally suited for complex wireless communication systems such as 5G networks, radar signal processing, satellite communications, and spatial spectrum direction finding.

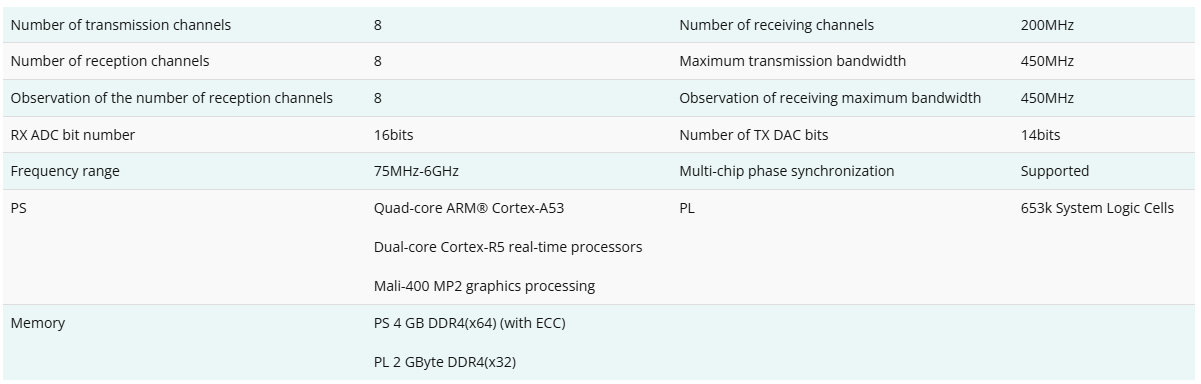

Technical parameter
