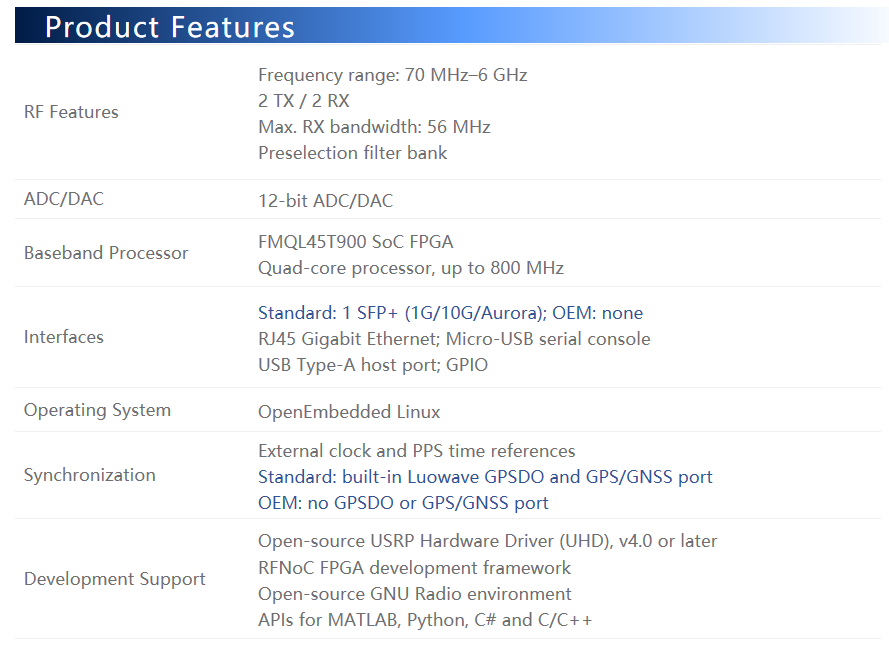

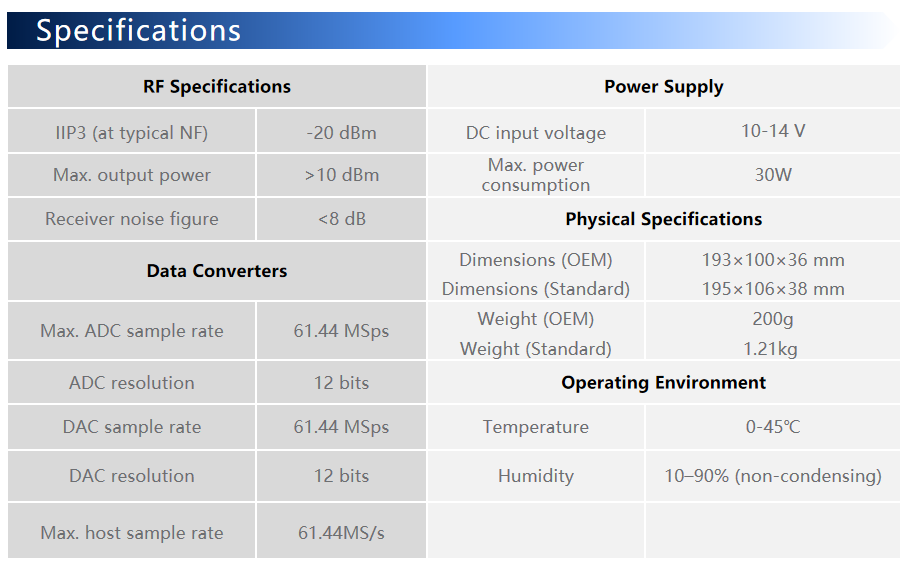

The LW-E320-G Series features the Beiwai B9361NYB RF transceiver and Fudan Microelectronics FMQL45T900 SoC. It supports a frequency range of 70 MHz–6 GHz, 2T2R operation, and up to 56 MHz instantaneous bandwidth. With integrated FPGA-based real-time signal processing and quad-core ARM embedded computing, the platform can operate independently under Linux.
To meet the diverse requirements of research and development, professional SDR applications, equipment integration, and volume deployment, Luowave offers two versions: LW-E320-G-Standard and LW-E320-G-OEM.
The OEM version retains the same core RF transceiver, FPGA real-time processing, and quad-core ARM embedded computing capabilities as the Standard version, while omitting the SFP+ high-speed interface, GPS interfaces, and GPSDO. Designed for integration into communication terminals, spectrum-monitoring systems, signal-detection equipment, radar systems, and unmanned platforms, it supports productization and volume deployment. The two versions are optimized respectively for development and expansion or equipment integration, allowing customers to select the appropriate model based on interface, synchronization, and deployment requirements.
