USRP-LW B210

●  Two-way transmission, highly integrated design

●  RF coverage range of 70MHz to 6GHz

●  Uses a programmable Spartan 6 XC6SLX150 FPGA

●  Provides a maximum real-time bandwidth of 56MHz

Product introduction

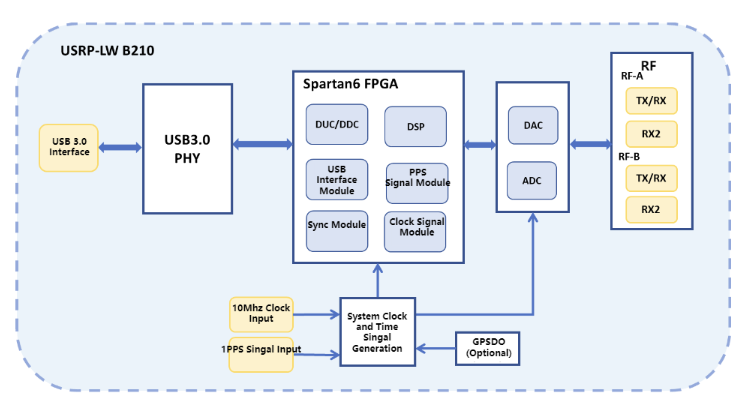

The USRP-LW B210 is a highly integrated, dual-channel Software-Defined Radio (SDR) device that supports an RF frequency range of 70 MHz to 6 GHz. It features a high-speed USB 3.0 interface and is supported by open-source USRP Hardware Drivers (UHD), enabling compatibility with various SDR frameworks. The device utilizes a programmable Xilinx Spartan-6 XC6SLX150 FPGA and an AD9361 RF front-end to provide a maximum real-time bandwidth of 56 MHz.

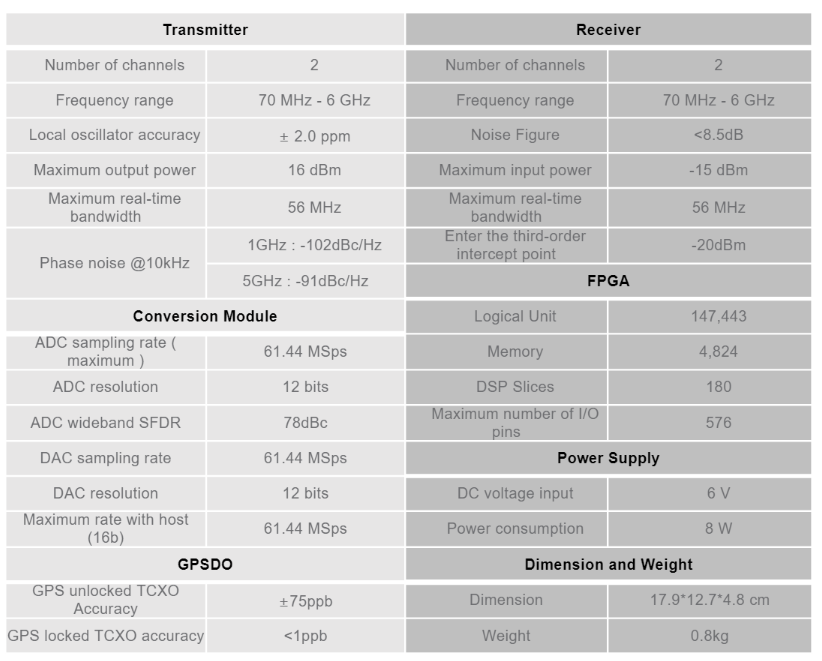

Technical parameter

Input/Output

Single-channel RF Performance

DC Voltage Input

6V

GPS Lock TCXO Accuracy

<1ppb

Convert Module Parameters

Single-sideband Mirroring/LO Rejection

-35/50dBc

ADC Sampling Rate (Max)

61.44 MSps

3.5GHz

1.0degRMS

ADC Resolution

12 bits

6GHz

1.5degRMS

ADC Wideband SFDR

78dBc

Output Power

>10dBm

DAC Sampling Rate

61.44 MSps

IIP3

-20dBm

DAC Resolution

12 bits

Noise Figure

<8dB

Maximum Tansfer Rate With Host (16b)

61.44 MSps

Physical Properties

Local Oscillator Accuracy

±2.0ppm

Size

17.5*10*1.7 CM

Unlock GPS TCXO Accuracy

±75ppb

Weight

0.695Kg
