USRP-LW N210

●  Radio frequency range covers DC-6GHz

●  One transmitter and one receiver, 16-bit width up to 25MHz Xilinx Spartan XC3SD3400A

●  Gigabit Ethernet port, MIMO EXPANSION interface

●  Supports GNU Radio

●

●

●

●

Immediate enquiry

Product introduction

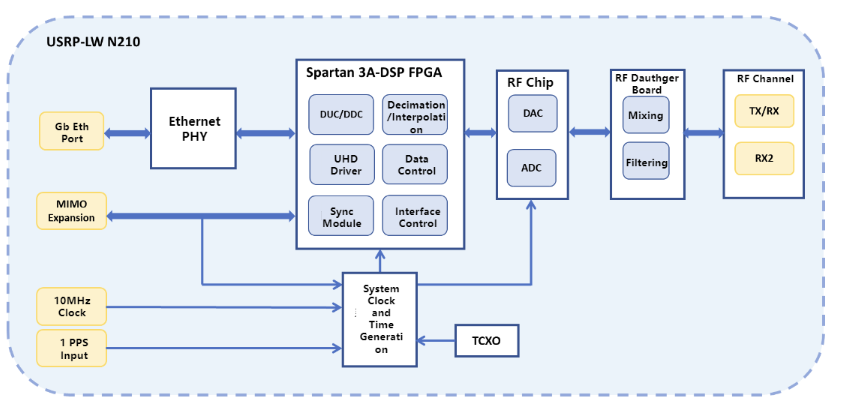

The USRP-LW N210 series features high-bandwidth and large dynamic range processing capabilities. Custom functions can be implemented either within the FPGA architecture or on the 32-bit RISC soft core integrated on the motherboard.

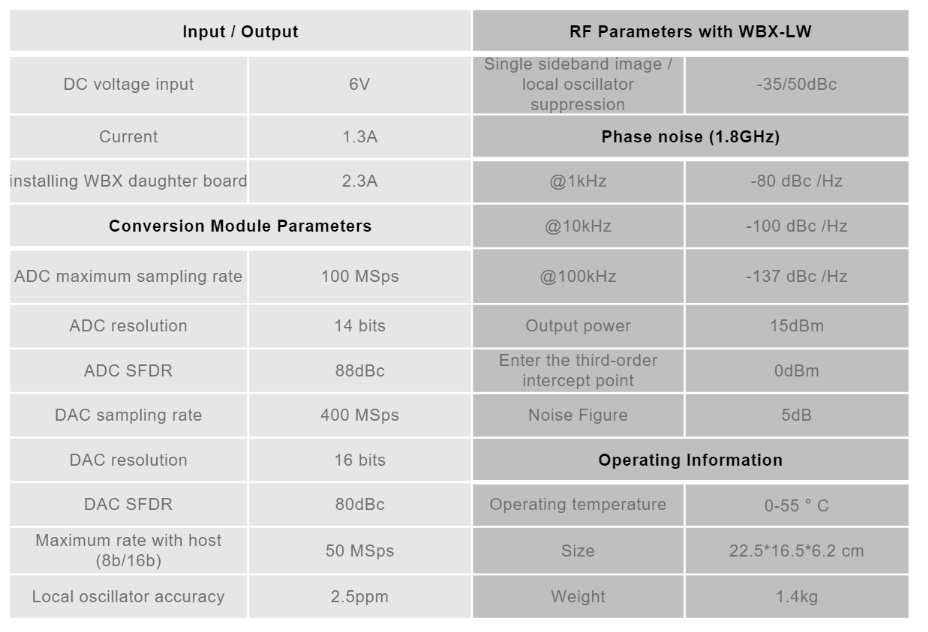

Technical parameter

Input/Output

RF Performance Parameters When Paired With WBX-LW

DC Voltage Input

6V

Single-sideband Mirroring/LO Rejection

-35/50dBc

Current

1.3A

Phase Noise (1GHz)

Current （ With WBX Daughter Board）

2.3A

@1kHz

-96 dBc/Hz

Convert Module Parameters

@10kHz

-103 dBc/Hz

ADC Maximum Sampling Rate

250 MSps

@100kHz

-110 dBc/Hz

ADC Resolution

16 bits

Output Power

15dBm

ADC SFDR

87dBc

IIP3

0dBm

DAC Sampling Rate

400 MSps

Noise Figure

5dB

DAC Resolution

16 bits

Physical Properties

DAC SFDR

80dBc

Operating Temperature

0-55°C

Maximum Tansfer Rate With Host (8b/16b)

50/25 MSps

Size

22.5*16.5*6.2 CM

Local Oscillator Accuracy

2.5ppm

Weight

1.4Kg
