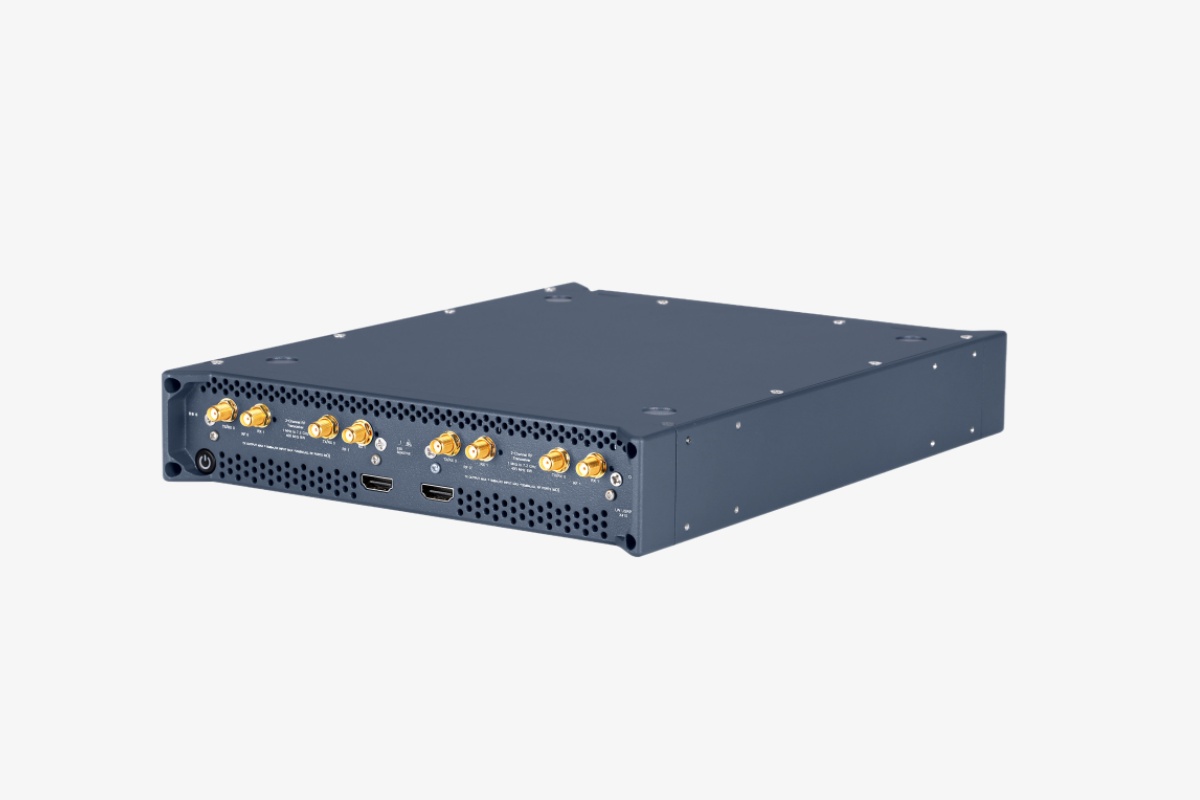

Luowave X410 PRO/PRO+

● Stand-alone (embedded) or host-based (network streaming) operation

● 1 MHz to 7.2 GHz frequency range (tunable up to 8GHz)

● Up to 400 MHz of instantaneous bandwidth per channel

● 4 RX, 4 TX in half-wide RU form factor

● Xilinx Zynq-Ultrascale+ ZU48DR RFSoC

● 12 bit ADC, 14 bit DAC

● Two QSFP28 ports (10 Gigabit Ethernet, 100 Gigabit Ethernet, Aurora)

● One PCIe Gen3 x 8 Interfaces、RJ45 (1 GbE)、Built-in GPSDO

● Two FPGA Programmable GPIO Interfaces (HDMI)

● GNU Radio, Matlab, Labview supported

Immediate enquiry

Product introduction

Luowave X410 PRO/PRO+ | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device

Luowave X410 PRO/PRO+ is a new-generation four-channel software-defined radio (SDR) platform developed by Wuhan Luoguang Electronics, based on Xilinx Zynq UltraScale+ RFSoC with an integrated quad-core ARM processor and 12-bit ADC/14-bit DAC.

This device features a wide frequency coverage of 1MHz–7.2GHz (expandable to 8GHz) and adopts a dual-conversion superheterodyne architecture, providing four independent transceiver channels, each supporting 400MHz instantaneous bandwidth.Compatible with LabVIEW, GNU Radio, and other development environments, the Luowave X410 PRO/PRO+ stands out with its wide frequency range, large bandwidth, multi-channel capability, and high integration, making it an ideal R&D platform for wireless communications, radar, electronic warfare, and other fields.

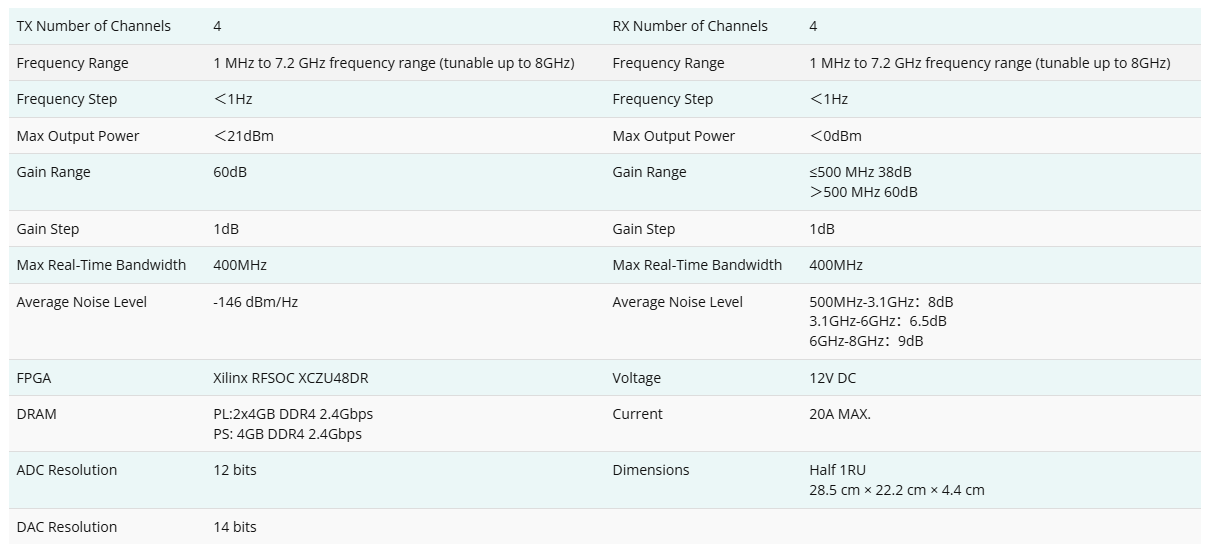

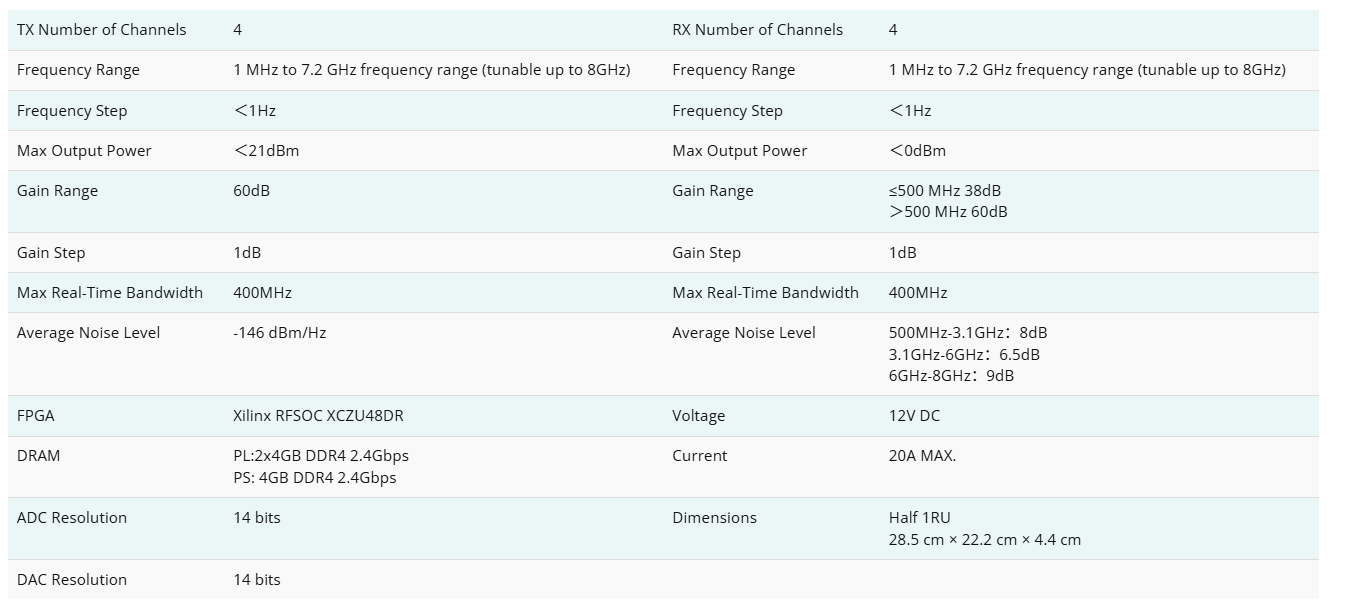

Technical parameter
