USRP-LW X310

●  The frequency coverage ranges from DC to 6 GHz (with a maximum support extending to 44GHz)

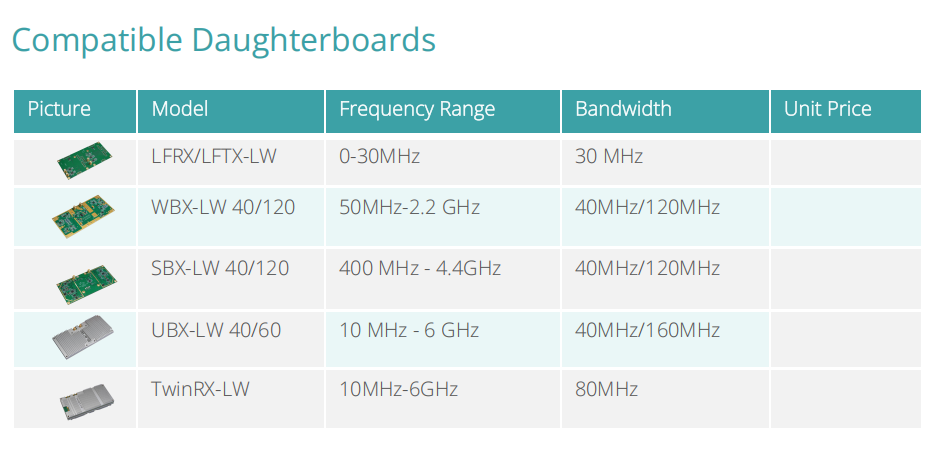

●  Supports the insertion of two independent RF sub-boards, enabling 2 independent transmission and 2 independent reception channels

●  Full-duplex transmission, with a maximum bandwidth of 160M for a single channel

●  Built-in Xilinx Kintex-7 410T FPGA

●  Various high-speed data interfaces (PCIe, USB, SFP Gigabit/Ten Gigabit network ports)

●  Supported RFNoC development framework

●  Support GNU Radio

Immediate enquiry

Product introduction

The USRP-LW X310 is a high-performance, next-generation Software-Defined Radio (SDR) platform designed for advanced software radio design and development. The digital processing core of the USRP-LW X310 is centered around the Xilinx Kintex-7 410T FPGA, which integrates key components such as the RF front-end, DDR3 memory, and high-speed host interface connectivity. This FPGA is

preconfigured with essential components for controlling digital down-conversion, digital up- conversion, fine frequency tuning, and various other DSP functionalities via the UHD framework.

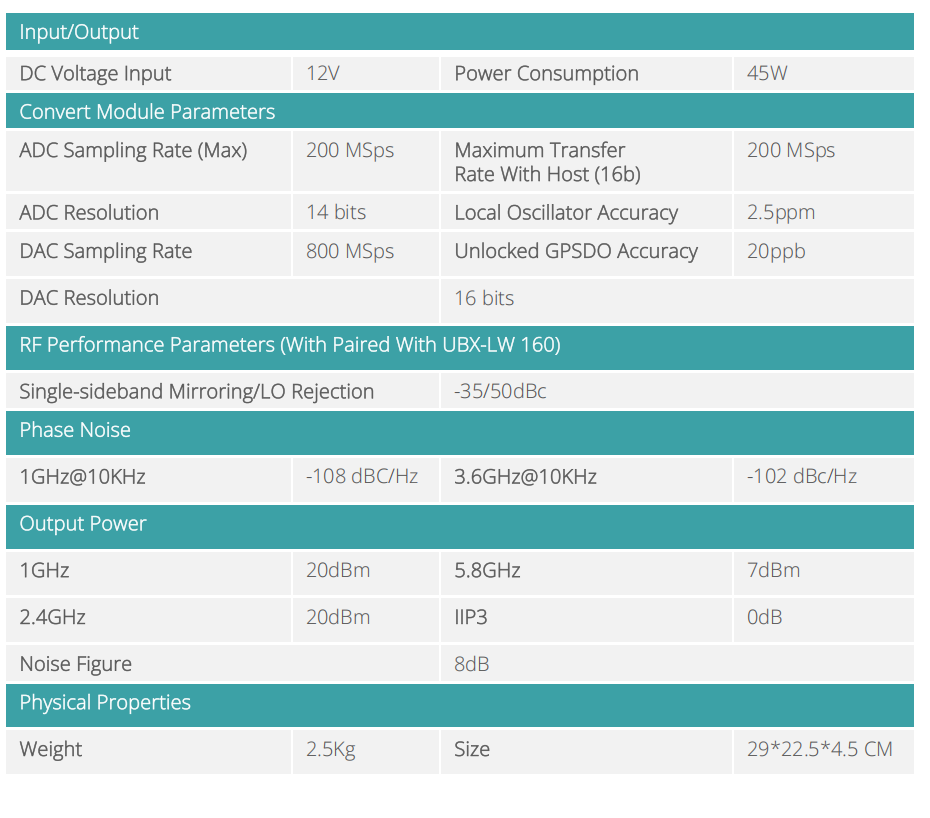

Technical parameter
