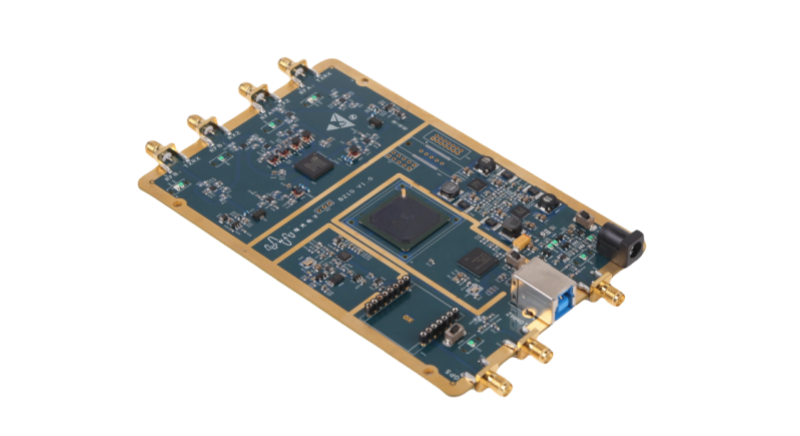

The LW B210-I is a highly integrated, two-way, industrial-grade software radio that supports multiple frameworks through the open source USRP Hardware Driver (UHD), a programmable Xilinx Artix ™ 7 FPGA 100T, an RF front end AD9361, and provides up to 56MHz of real-time bandwidth.
LW B210-I
●
Two-way transceiver, RF range covers 70MHz-6GHz
●
Maximum real-time bandwidth of 56MHz
●
The open-source UHD supports multiple frameworks.
●
Using two signal chains with AD9361 to provide coherent MIMO capability.
●
Using USB 3.0, it can provide a maximum transfer rate of 61.44 MSps.
●
Support for Xilinx VIVADO versions below 2019.2
Product introduction
Technical parameter
| Input/Output | Single-Channel RF Performance | ||
|---|---|---|---|
| DC Voltage Input | 6 V | GPS Locked TCXO Accuracy | <1ppb |
| Converter Module Parameters | |||
| ADC Sampling Rate (Max) | 61.44 MSps | 1GHz Phase Noise | -102dBc/Hz@10kHz |
| ADC Resolution | 12 bits | 5GHz Phase Noise | -91dBc/Hz@10kHz |
| ADC Wideband SFDR | 78dBc | Maximum Output Power | 16dBm |
| DAC Sampling Rate | 61.44 MSps | Third-Order Intercept Point | -20dBm |
| DAC Resolution | 12 bits | Noise Figure | <8.5dB |
| Max Host Rate (16b) | 61.44 MSps | Physical Attributes | |
| LO Accuracy | ±2.0ppm | Dimensions | 17.2×10 cm |
| GPS Unlocked TCXO Accuracy | ±75ppb | Weight | 0.11kg |
