USRP-LW N321

●  The radio frequency range covers 3MHz to 6GHz

●  Two receive and two transmit, with an instantaneous bandwidth of up to 200MHz per channel

●  Xilinx Zynq-7100 SoC

●  Dual-core ARM Cortex-A9 800MHz CPU

●  1 QSFP+ port

●  2 SFP+ ports (1 Gigabit Ethernet port, 1 10 Gigabit Ethernet port, Aurora)

●  Supports RJ45 (1 GbE)

●  External clock reference and PPS time reference

●  External RX LO, TX LO input and output ports

●  1 Type A USB host port

●  1 micro-USB port (serial console, JTAG)

●  USRP hardware driver (UHD 3.15.0.0 or higher) and open-source software API version

●  RFNoC™ FPGA Development Framework

Immediate enquiry

Product introduction

Luowave USRP-LW N321 | 2 TX/RX Channels, RF 3 MHz-6 GHz, 200 MHz BW Each, 1 × QSFP+, 2 × SFP+, 1 × RJ45, USRP Software Defined Radio Device


The USRP-LW N321 is a network-capable Software-Defined Radio (SDR) platform designed to provide reliability and fault tolerance for large-scale and distributed wireless systems. It features a flexible synchronization architecture that supports a 10 MHz clock reference and PPS time reference, as well as external TX LO and RX LO inputs, making it suitable for phase-coherent MIMO test platforms.

The USRP-LW N321 leverages the latest software developments from UHD to simplify the control and management of multiple devices on the network. It offers advanced remote management capabilities, including debugging, software updates, rebooting, resetting to factory settings, and monitoring system operations.


16ch Synchronous Acquisition System Based on LUOWAVE USRP-LW N321 SDR

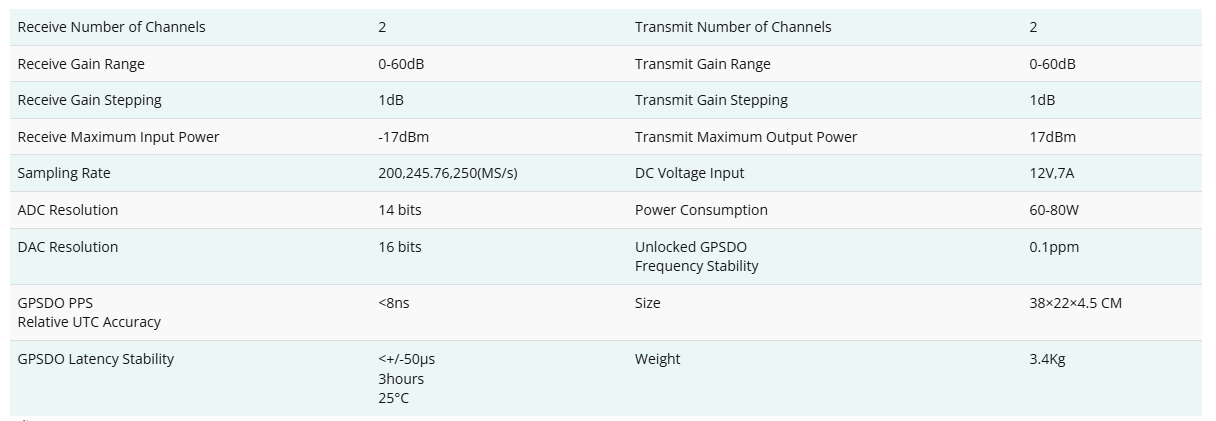

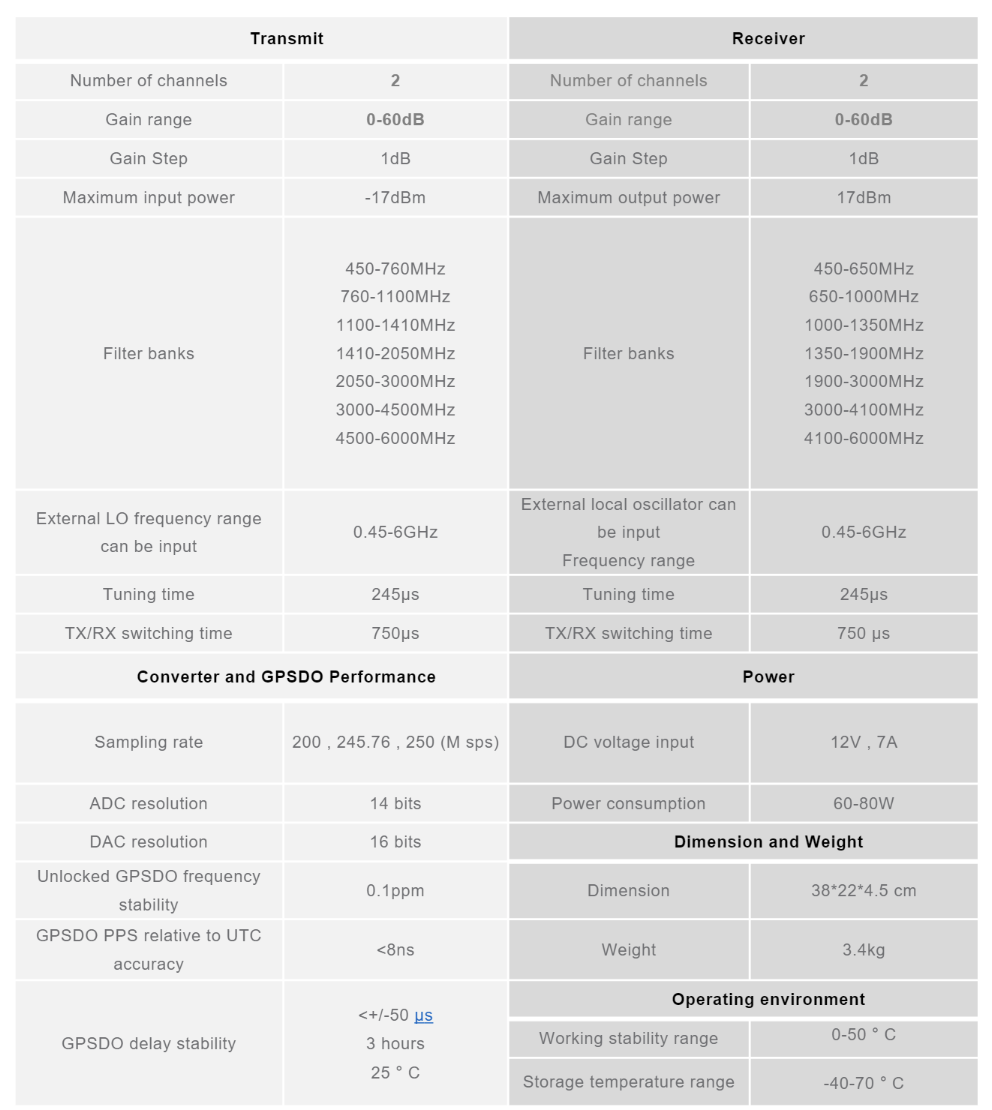

Technical parameter
