Luowave LW320

●  Onboard Xilinx Zynq UltraScale+ MPSoC ZU11EG

●  ADI’s ADRV9009 RF chip, RF Range: 75 MHz – 6GHz

●  2 TX and 2 RX, Instantaneous Bandwidth: Up to 200 MHz per channel

●  Multi-device Phase Synchronization: <1° phase coherence deviation

●  Bandwidth Expansion Support: Enables rapid deployment of millimeter-wave systems

●  High-speed Interfaces: Gigabit Ethernet & PCIe for high-throughput data transfer

●  Supporting GPIO universal interface and JTAG debugging capability

●  Support external clock reference and PPS time reference

●  Applications including radar, SATCOM, and sub-THz 6G prototyping

●  Applications including radar, SATCOM, and sub-THz 6G prototyping

Immediate enquiry

Product introduction

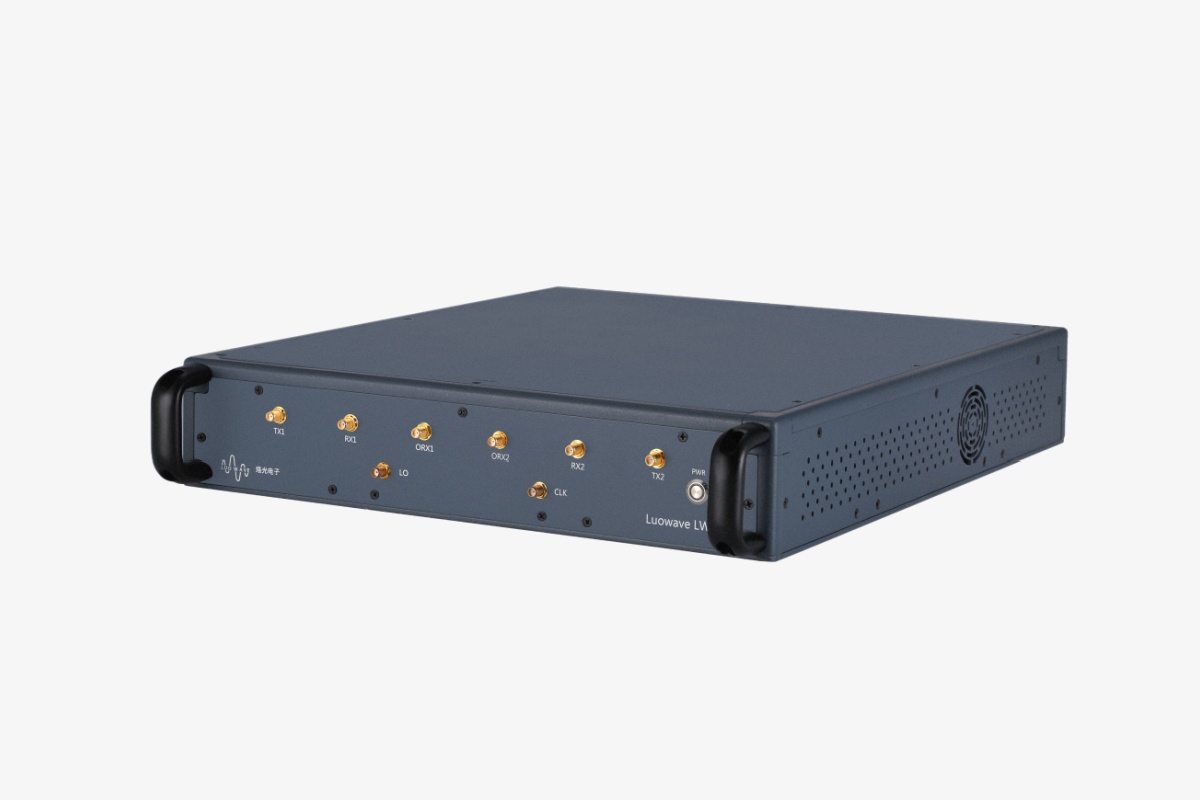

Luowave LW320 | 2T2R 75 MHz-6 GHz RF SDR, 200MHz bandwidth/ch, Phase-Coherent Supported, USRP Software Defined Radio Device

The Luowave LW320 is a high-performance dual-channel software defined radio (SDR) platform developed by Wuhan Luoguang Electronics. Integrating ADI's advanced ADRV9009 RF transceiver with Xilinx's UltraScale+ ZU11EG SoC, this compact yet powerful solution delivers exceptional RF performance across 75 MHz to 6 GHz frequency range with up to 200 MHz instantaneous bandwidth per channel.

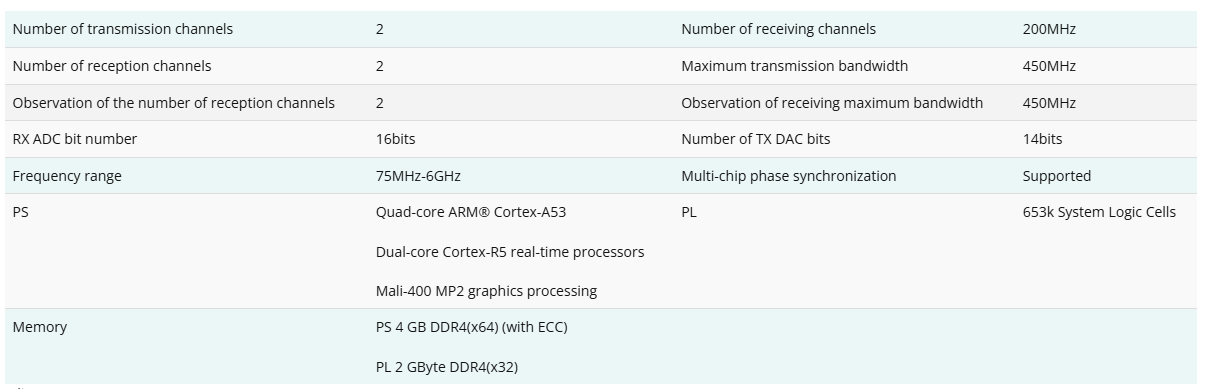

Technical parameter
