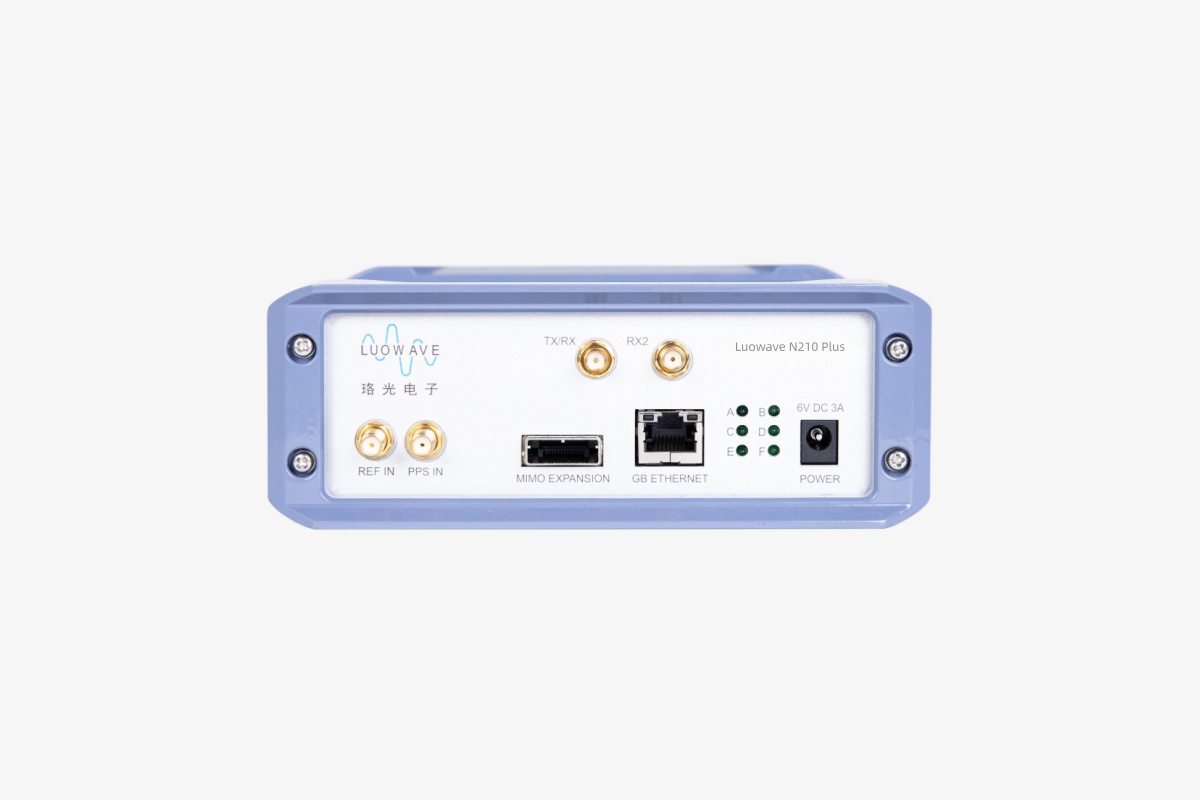

The Luowave N210 Plus series features high-bandwidth and wide dynamic range processing capabilities. Custom functions can be implemented within the FPGA architecture or on the 32-bit RISC soft core integrated on the motherboard.
Product introduction
Technical parameter
| Input/Output | RF Performance with WBX-LW | ||
| DC Voltage Input | 6 V | SSB Image/LO Suppression | -35/50dBc |
| Current | 1.3A | Phase Noise (1.8GHz) | -80 dBc/Hz (10kHz) |
| Current with WBX Board | 2.3A | Phase Noise | -100 dBc/Hz (100kHz) -137 dBc/Hz (1MHz) |
| Conversion Module Parameters | |||
| ADC Max Sampling Rate | 250MS/s | Output Power | 15dBm |
| ADC Resolution | 16bits | Input 3rd Order Intercept Point | 0dBm |
| ADC SFDR | 87dBc | Noise Figure | 5dB |
| DAC Sampling Rate | 400MS/s | Physical Properties | |
| DAC Resolution | 16bits | Operating Temperature | 0-55°C |
| DAC SFDR | 80dBc | Size | 22.5×16.5×5 cm |
| Max Rate with Host (8b/16b) | 50/25MS/s | Weight | 1.0kg |
| LO Accuracy | 2.5ppm | Locked GPSDO Accuracy | 0.01ppm |
