Luowave LW420

●  Onboard Xilinx Zynq UltraScale+ MPSoC ZU11EG

●  ADI’s ADRV9009 RF chip, RF Range: 75 MHz – 6GHz

●  4 TX and 4 RX, Instantaneous Bandwidth: Up to 200 MHz per channel

●  Multi-device Phase Synchronization: <1° phase coherence deviation

●  Bandwidth Expansion Support: Enables rapid deployment of millimeter-wave systems

●  High-speed Interfaces: Gigabit Ethernet & PCIe for high-throughput data transfer

●  Supporting GPIO universal interface and JTAG debugging capability

●  Support external clock reference and PPS time reference

●  Applications including radar, SATCOM, and sub-THz 6G prototyping

Product introduction

Luowave LW420 | 4T4R 75 MHz-6 GHz RF SDR, 200MHz bandwidth/ch, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device

The Luowave LW420 is a high-performance 4-channel coherent SDR solution, built on ADI's ADRV9009 RF transceiver and Xilinx UltraScale+ ZU11EG SoC. It covers a wide frequency range from 75 MHz to 6 GHz with up to 200 MHz instantaneous bandwidth per channel, delivering exceptional phase coherence for demanding wireless applications.

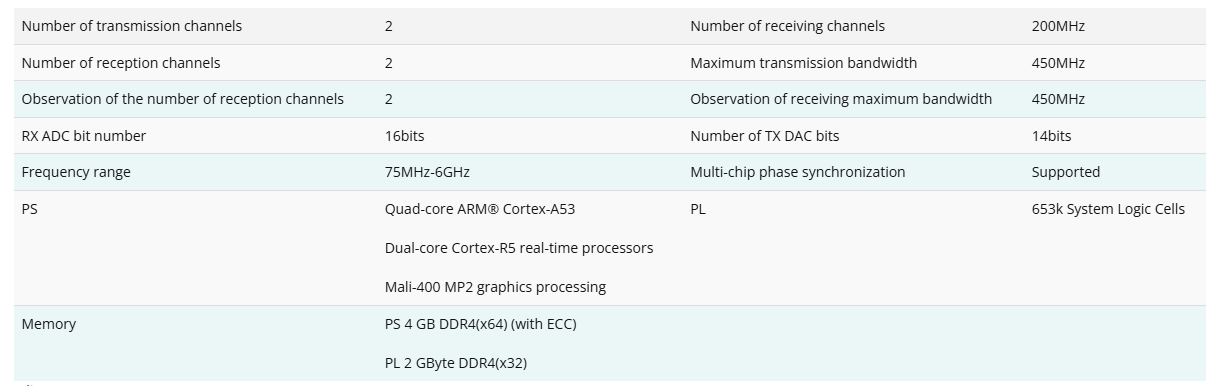

Technical parameter
