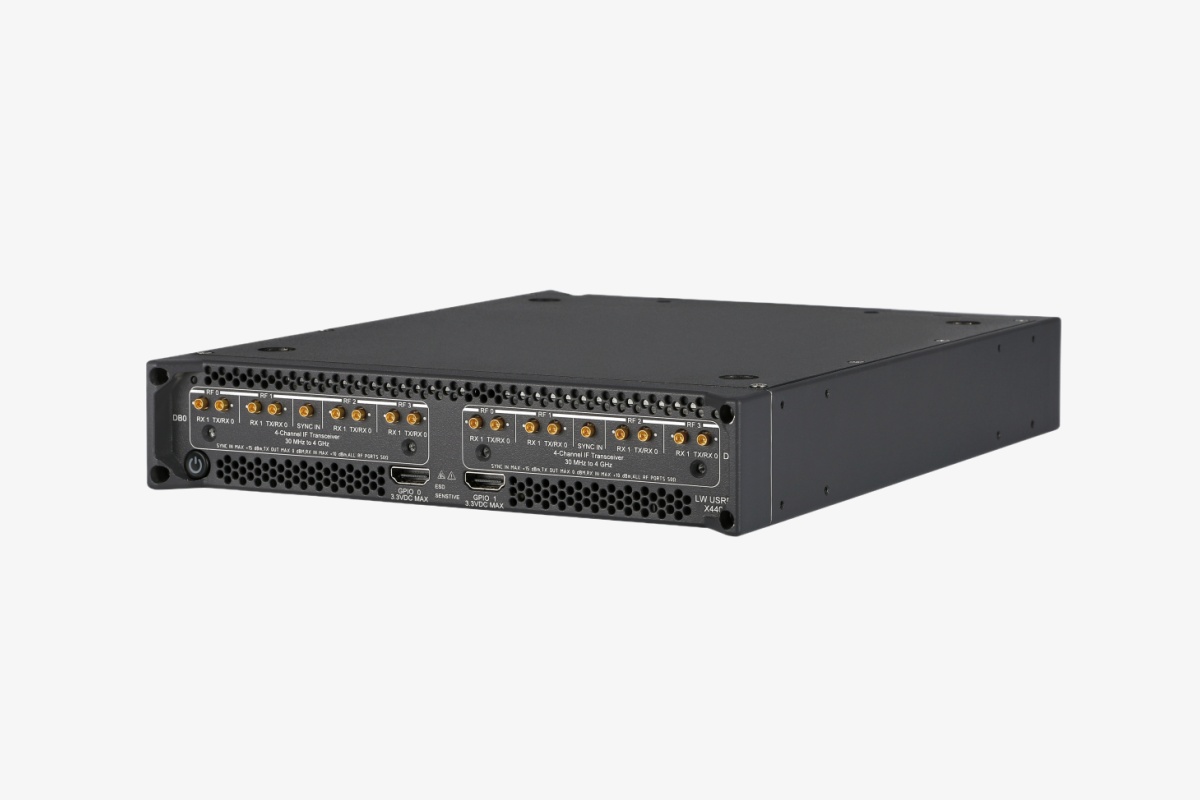

Luowave X440 PRO | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device
Luowave X440 PRO is a high-performance software-defined radio (SDR) device based on a direct RF sampling architecture, featuring 8 transmit and 8 receive channels. It supports an intermediate frequency (IF) range of 30MHz to 4GHz, delivering a maximum bandwidth of 1.6GHz in single/dual-channel mode, while maintaining 400MHz per channel in 8-channel mode. Equipped with 12-bit ADC and 14-bit DAC, it achieves a sampling rate of up to 4GSps.
Powered by Xilinx Zynq UltraScale+ RFSoC FPGA and a quad-core ARM processor, the device offers exceptional real-time signal processing capabilities. Its outstanding phase coherence ensures <1° RMS phase stability across internal channels and <2° RMS between multiple units, making it an ideal solution for demanding applications such as MIMO systems, beamforming, and high-precision direction finding.
