Luowave SDR - A Professional SDR System & Solution Provider

DEEPSDR 1

●  Equipped with the NVIDIA Jetson Orin NX 16GB AI module, it supports real-time AI inference.

●  Dual transceivers with an RF range of 300MHz–6GHz and up to 56MHz real-time bandwidth.

●  Programmable Spartan 6 XC6SLX150 FPGA.

●  Dual signal chains based on AD9361, providing coherent MIMO capability.

●  Dual USB 3.0 ports + 1Gbps Ethernet enable bidirectional high-speed transmission at 61.44 MSps (16-bit samples).

●  Compatible with open-source UHD and supports multiple frameworks such as GNU Radio, LabVIEW, MATLAB, and TensorFlow.

●  Type-C OTG interface supports direct peripheral connection (e.g., USB drives, keyboards, sensors), and DP interface supports 4K display.

Immediate enquiry

Product introduction

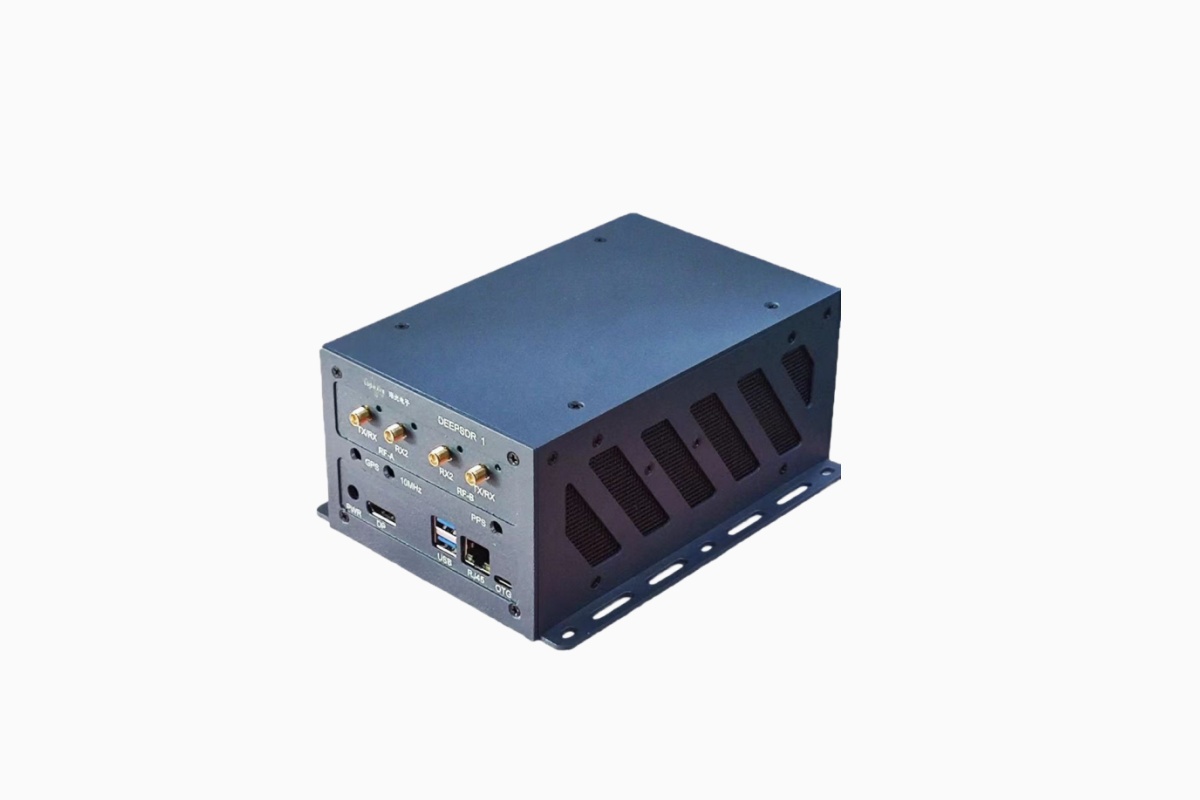

DEEPSDR 1 is an innovative intelligent wireless platform developed by Luoguang Electronics for edge intelligent radio frequency applications. It centers around the NVIDIA Jetson Orin NX 16GB AI module as the computing core and the USRP-LW B210 as the RF hardware foundation, combining the flexible signal processing capability of software-defined radio (SDR) with the real-time inference power of edge AI in a breakthrough manner.


Unlike traditional SDR systems that rely on cloud processing and suffer from high latency, this product can perform complex intelligent tasks—such as spectrum sensing, modulation recognition, and interference detection—directly at the edge. With millisecond-level response times, it perfectly meets the demands of industrial applications for low latency and high integration. Moreover, the device is compatible with open-source UHD drivers and mainstream development frameworks such as GNU Radio and TensorFlow. It not only supports algorithm validation in research settings but can also be deployed in industrial fields like smart communications and spectrum monitoring, providing an integrated "acquisition–analysis–decision" solution.

Technical parameter
