The LW B205-I is a small-scale industrial-grade software radio.
The device has a programmable Xilinx Artix ™ 7 FPGA 100T, and the transmitter front uses ADI's AD9364 RF integrated circuit, which is a cost-effective one-receive-one-send transceiver.

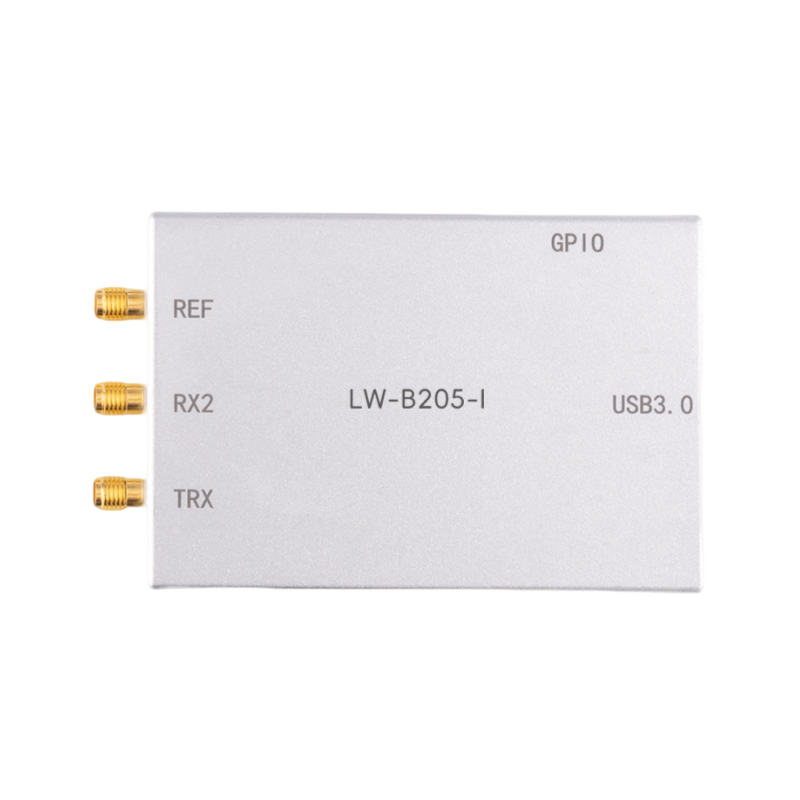

LW B205-I
●
The radio frequency range covers 70MHz to 6GHz
●
The maximum supported real-time bandwidth is 56 MHz, with a benchmark sampling rate of 61.44 MSps
●
The open-source UHD supports multiple frameworks
●
Support for UHD 4.0 or newer driver versions is required
●
Supports high-speed USB 3.0 connection and USB power supply
●
GPIO general interface and JTAG debugging capability
●
Supports 10 MHz reference clock or PPS synchronization
●
Support for Xilinx VIVADO versions below 2019.2
Product introduction
Technical parameter
| Input/Output | RF Performance Parameters | ||
|---|---|---|---|
| DC Voltage Input | 5V | Input Third-order Intercept Point | -21dBm |
| Conversion Module Parameters | |||
| ADC Sampling Rate (Max) | 61.44 MSps | Noise Figure | <8.5dB |
| ADC Resolution | 12 bits | Local Oscillator Accuracy | ±2.0ppm |
| DAC Sampling Rate | 61.44 MSps | Physical Properties | |
| DAC Resolution | 12 bits | Dimensions | 10.4×5.7 cm |
| Max Host Rate (16b) | 61.44 MSps | Weight | 0.04kg |
