USRP-LW N310

●  The radio frequency range covers 10 MHz to 6 GHz

●  Four transmitters and four receivers, with an instantaneous bandwidth of up to 100 MHz per channel

●  Dual-core ARM Cortex-A9 CPU 800 MHz

●  Built-in Xilinx Zynq-7100 SoC FPGA

●  Support for external clock reference and PPS time reference

●  Support for external RX LO and TX LO input

●  Dual SFP+ ports (Gigabit Ethernet ports, 10 Gigabit Ethernet ports, Aurora)

●  RFNoC FPGA Development Framework

●  Support for UHD3.11.0 or later versions

●  1 micro-USB port (serial console, JTAG)

●  1 Type A USB host port

●  Built-in customized Linux

●  Support GNU Radio

Immediate enquiry

Product introduction

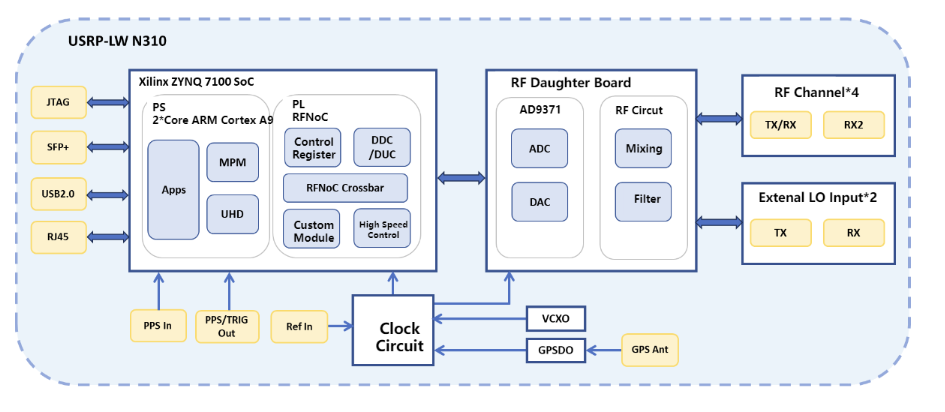

The USRP-LW N310 is a networked software-defined radio (SDR) engineered for reliability and fault tolerance in large-scale, distributed wireless systems. It integrates dual Analog Devices AD9371 RFIC transceivers, delivering 4 TX and 4 RX channels in a compact half-width RU case.


At its core, the Xilinx Zynq-7100 SoC combines a powerful user-programmable FPGA for real-time, low-latency processing with a dual-core ARM CPU for standalone operation. Dual SFP+ ports support 1 GbE, 10 GbE, and Aurora interfaces, enabling high-throughput IQ data streaming to host PCs or FPGA coprocessors.


With advanced remote management capabilities, the USRP-LW N310 simplifies network control through commissioning, software updates, reboots, factory resets, self-tests, host/ARM debugging, and system health monitoring.

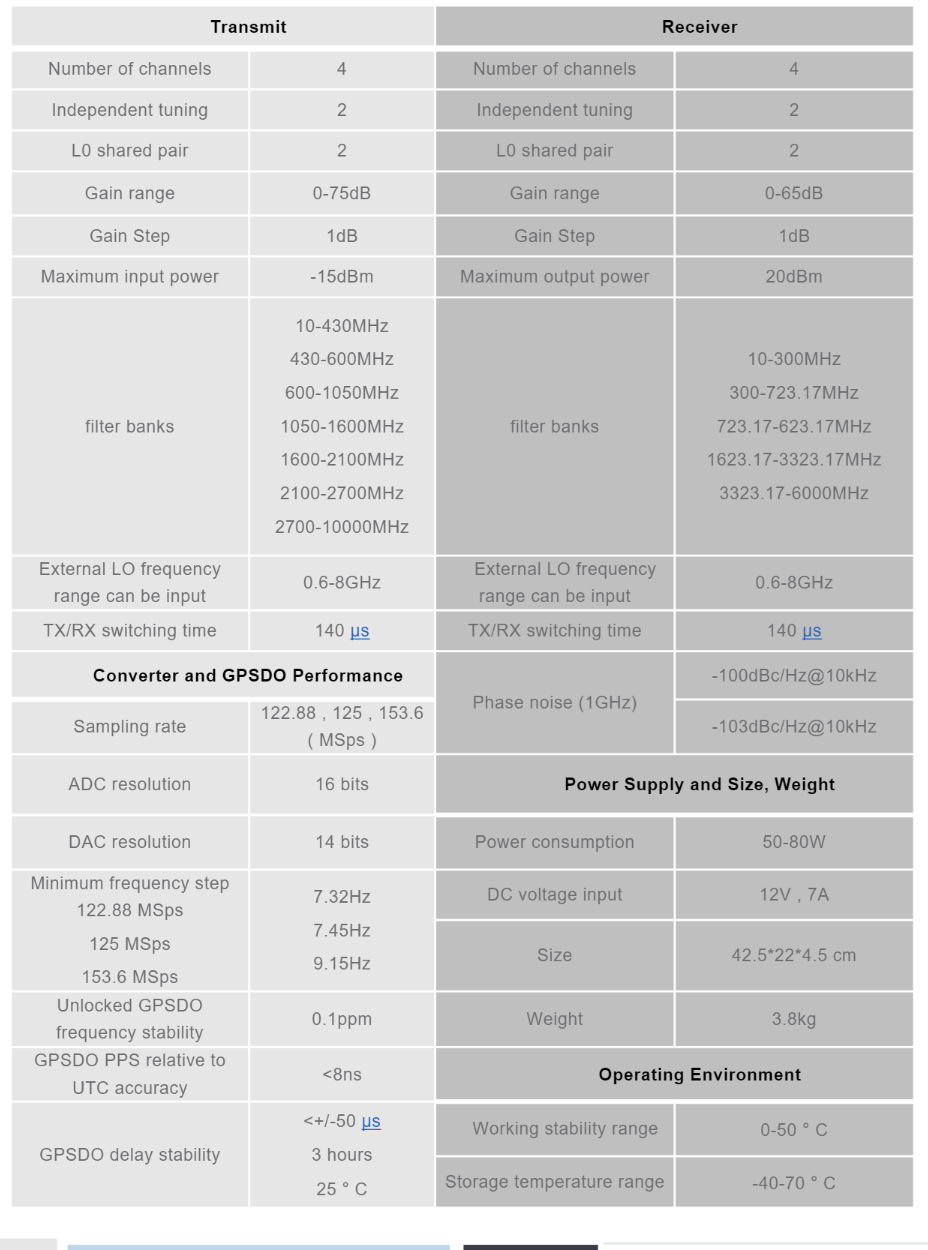

Technical parameter
